Wrap Smarter, Not Harder.
No More Manual Wrapping and Operational Hassles.
Why You Need The Latest X100
From effortless operation to minimized environmental impact, the X100 delivers efficiency, safety, and protection for your business.
Increase Productivity
Eliminates the need for manual film application, cutting, and strapping, increasing overall production output.
Reduce Labor Costs
Automates the process reduces reliance on manual labor, leading to significant cost savings in the long run.
Enhance Product Protection
Secure wrapping minimizes damage during transport and storage, ensuring your products arrive in pristine condition.
Improve Safety
With safety with features like anti-falling devices and alarms, the risk of accidents is minimized.
Reduce Material Usage
The machine's system optimizes film usage, applying the correct tension, reducing material waste by at least 50%.
User-friendly Operation
Features a simple control system with a touchscreen, making it easy to learn and operate, reducing training time.
Experience the X100's Fully Automatic Efficiency.
Revolutionize your pallet wrapping with the X100. Fully automatic, efficient, and safe.
Vincco Success:
Innovating the Film and Beyond
What industries is the X100 suitable for?
The X100 is utilized across various industries where palletized loads need to be wrapped securely and efficiently, improving the overall supply chain operations. These include:
Why Choose Us?
Vincco Success is Malaysia's leading supplier of a wide range of packaging products and top-quality wrapping machines.
Installation & Training Services
Our installation services and hands-on training ensure you can operate and maintain our wrapping machine efficiently.
Comprehensive Warranty
We provide a comprehensive warranty for our X100 wrapping machine, covering parts and labor for a specified period.
Maintenance & Technical Support
Our technical support team is available to assist you with any questions or issues related to your wrapping machine.
+
Clients
%
Client Recommendation rate
Years of Experience
Our Service
one-stop solution:
wrapping machines and film adjustment services
Wrapping Machines
Suspendisse fermentum non, litora ante eros tristique. Vel pulvinar mi, aenean vivamus primis litora enim. Accumsan per mi habitant?
Films & Rolls
Suspendisse fermentum non, litora ante eros tristique. Vel pulvinar mi, aenean vivamus primis litora enim. Accumsan per mi habitant?
Others Products
Suspendisse fermentum non, litora ante eros tristique. Vel pulvinar mi, aenean vivamus primis litora enim. Accumsan per mi habitant?
X100 Features & Specifications

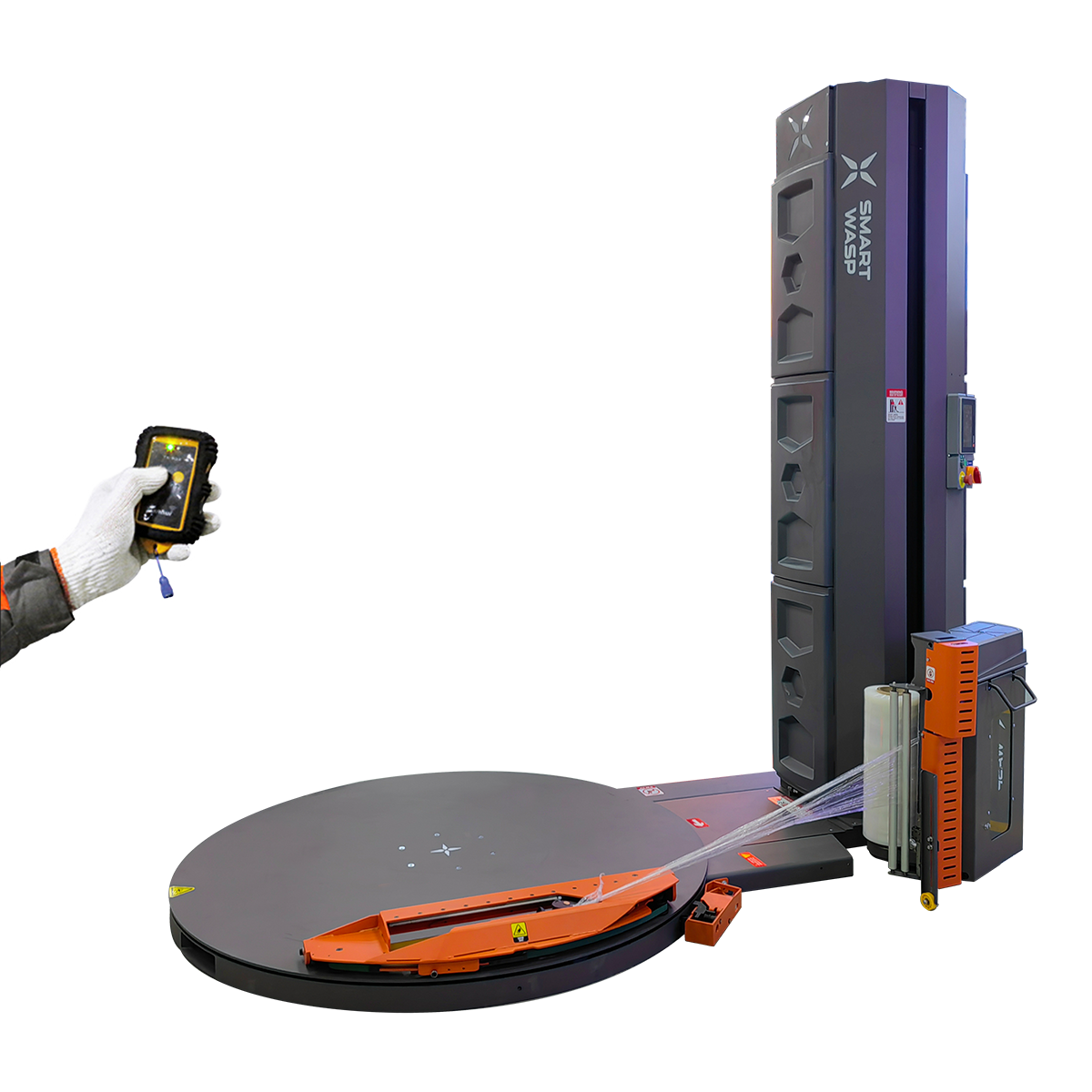

Remote Control System
The machine can be easily operated with remote controls, making starting and pausing more convenient.

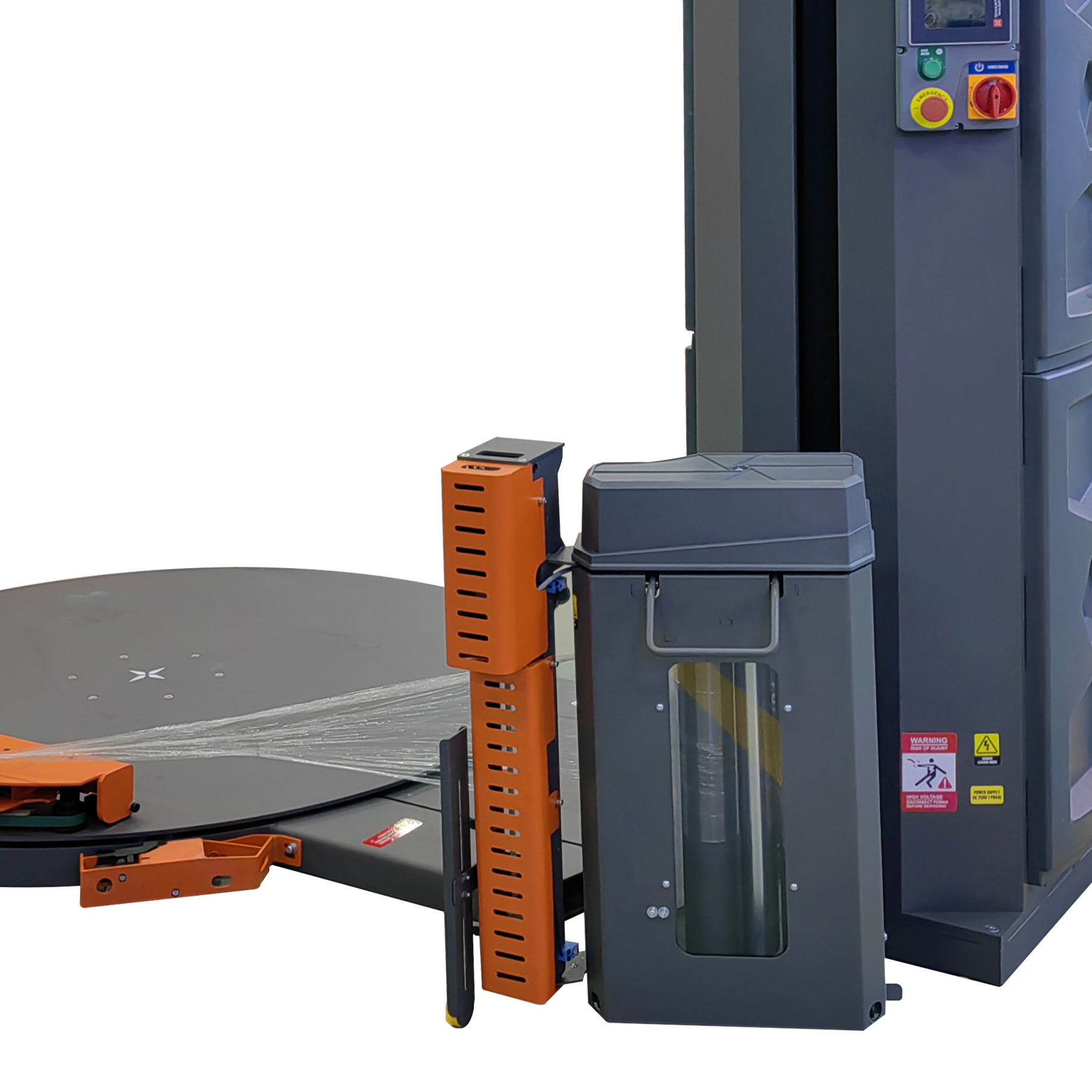

Roping System
The roping system enhances stability, protects goods with ultra-thin 15-micron films at 200% pre-stretch. It matches the strength of thicker films, offering over 50% savings in film usage.

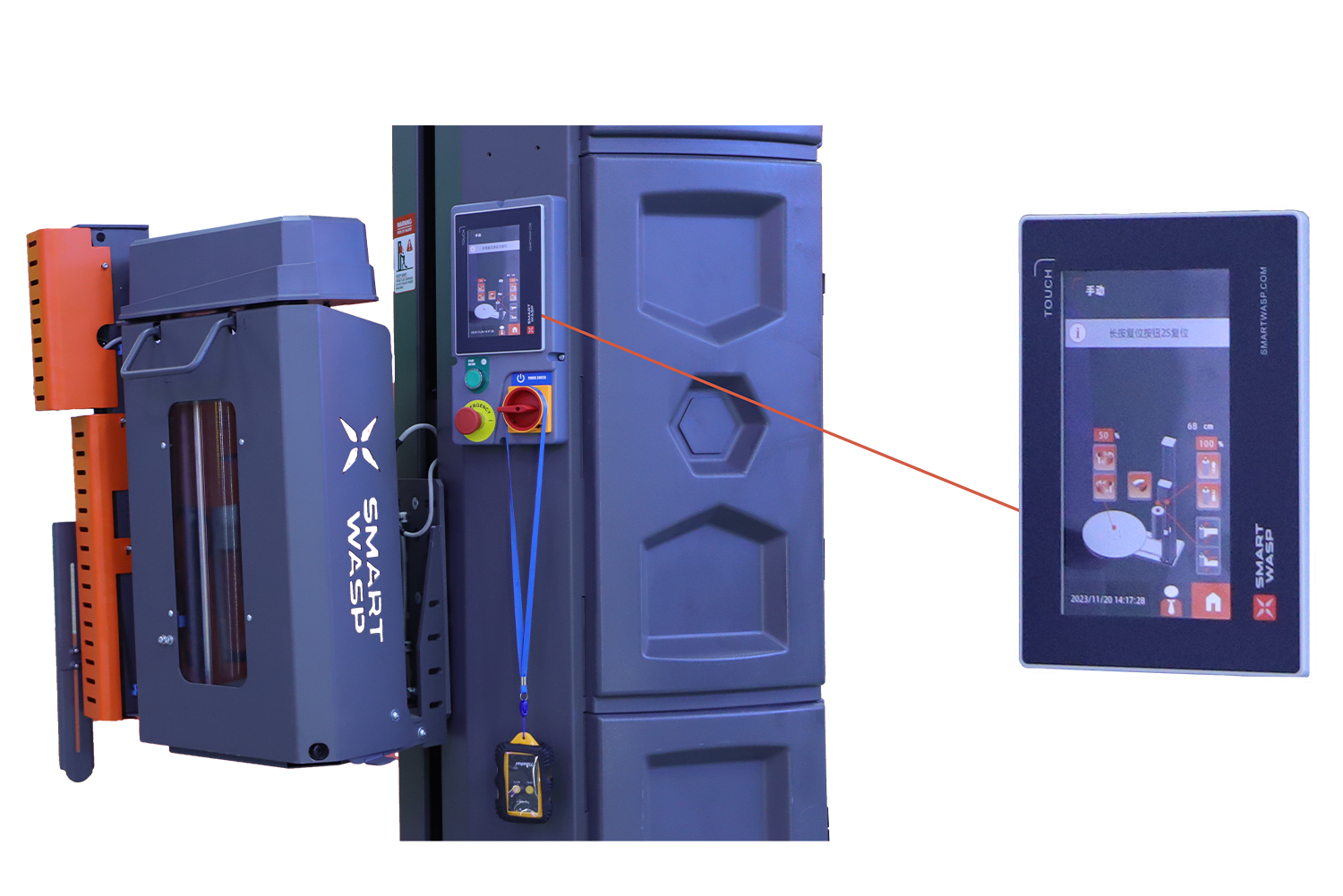

LCD Touch With Multi Layer Function
This multi-layer function allows for setting different wrapping layers and forces at any height desired.

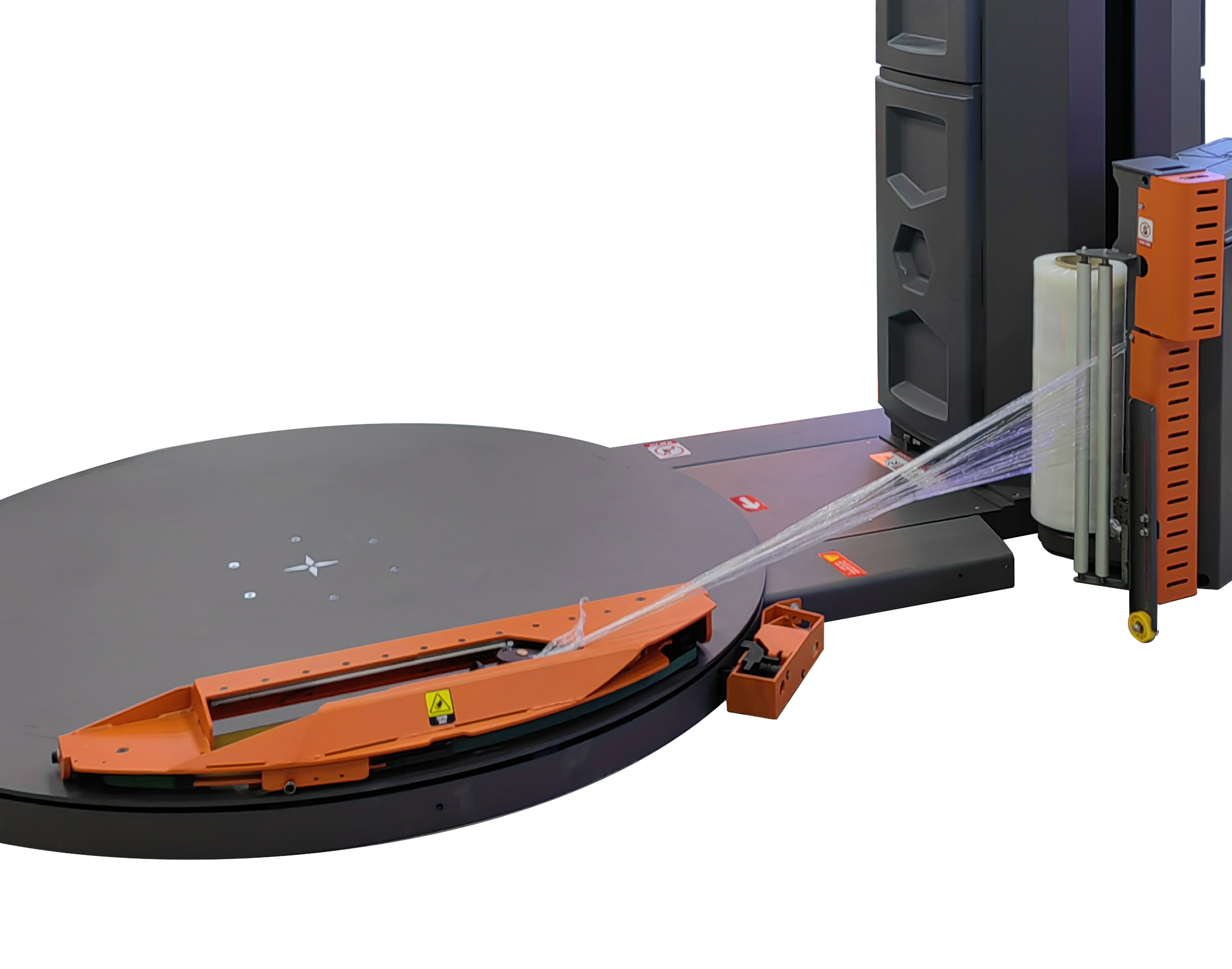

Automatic Cutting & Clamping Film System
The machine automatically cuts and clamps the film, eliminating the need for manual cutting or attaching the film to the pallet, significantly enhancing work efficiency.
Load Weight
Maximum 2000KG
Turntable Speed
3 ~ 12 RPM/mins
Packing Height
2400mm / 3000mm
Turntable Size
1650mm / 1800mm / 2000mm
(2200mm / 2400mm Optional )
Pre-Stretch Rate
200% (1m stretch to 3m) or
300% (1m stretch to 4m)
Up & Down Speed
1.5 - 5.5m / min
Wrapping Speed
30 - 40 Load/ H
Film Thickness
12 / 15 / 17 / 23
Film Width
500 mm (750 mm optional)
Film Diameter
250 mm
Film Paper Core
76 mm
Film Weight
Maximum 15KG
Machine Power
1.5kw
Voltage
220V -240V /50 / 60HZ Single-Phase
Machine Weight
750KG
Machine Size
2710*1650*2720mm (L*W*H)
Film Thickness (mm)
12 / 15 / 17 / 23
Wrapping Force
Automatic
Roping System
Included
Multi-layer
Control System
Included
Soft Start & Stop
Included
Intelligent Alarm
Included
Stop at Original
Included
Adjustable Speed
Included
Pallet Grip System
Included
Measure Height
Automatic
Product Memory
12 Mode
Cut And Clamp Film
Fully Automatic
Remote Start
Optional
PLC
Siemens
Inverter
X-line
Touch Screen
Smart Wasp / Siemens
Sensor Brand
SICK
Safety Device
Film carriage bottom safety sensor
Certificate
CE
Other Items
Ramp, Weighing Scale
Frequently Asked Questions (FAQ)
What brand is the X100 machine?
The brand of the X100 machine is Smart Wasp. Our team works closely with Smart Wasp to provide the best packaging automation solutions.
How long is the warranty period of the X100?
The X100 includes a 1 year warranty, complemented by ongoing after-sales maintenance and technical support from our team.
What's the mast height of the X100?
The X100 machine has a mast height of 2720mm, with a maximum packing height of 2350mm.
What control system does the X100 use?
The X100 utilizes a Siemens control system. Its high-quality spare parts ensure an extended machine lifespan.
What's the turntable size of the X100?
The standard turntable size is 1650mm, with optional sizes available.
What is the voltage requirement for the X100?
The X100 requires a single-phase 220v power supply.
What's the thickness of the turntable steel?
The turntable steel is 8mm thick.
What's the maximum load weight of the X100?
The X100 can support a maximum load weight of 2000KG.
Will a ramp and weighing scale be provided?
Yes, both the ramp and weighing scale will be provided if needed.
